您当前的位置:首页 » 全球竹建筑欣赏 » 越南:宾顿水上竹屋酒吧 竹建筑

越南:宾顿水上竹屋酒吧 竹建筑


项目介绍

建成时间:2008

用途:酒吧

位置:Binhduong、越南

建筑面积:270平方米

施工:Nghiem Dinh Toan + Vo Trong Nghia Architects

照片:Oki Hiroyuki, Phan Quang

奖项:2011年ARCASIA奖金奖

FuturArc绿色领导力奖,2011年获奖者

2010年“绿色好设计奖”

2009年国际建筑大奖

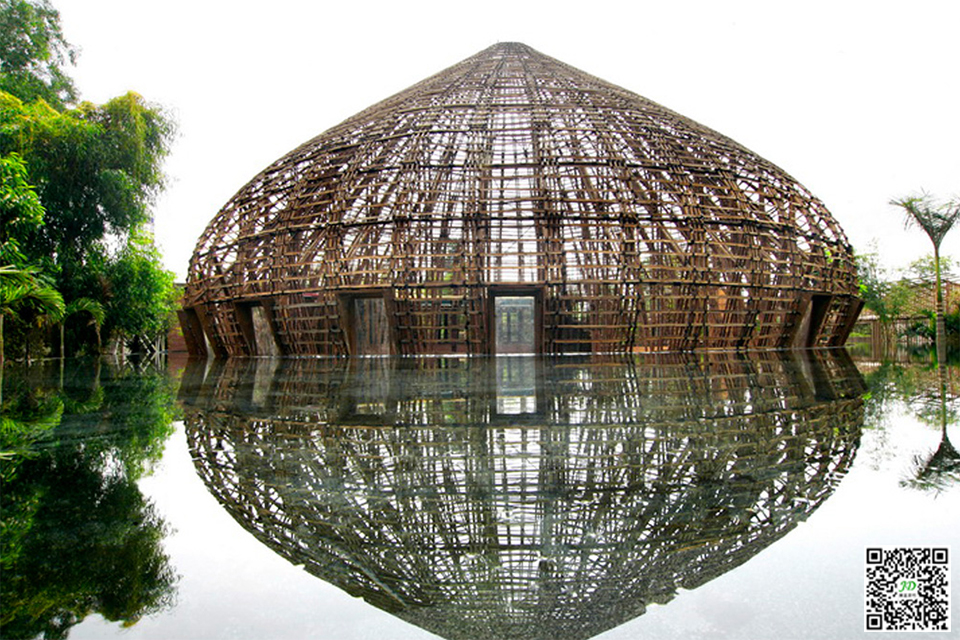

越南:宾顿水上竹屋酒吧 竹建筑!越南 风和水吧是位于人工湖中央的纯竹制结构,利用自然风能和湖上的凉水进行自然通风。屋顶上有一个直径1.5m的天窗,可以将酒吧内的热气排出室外。设计了竹拱结构体系;高10米,跨度15米。主体框架由48个预制件组成,每一个预制件都由几根竹子绑在一起组成。由当地工人历时3个月建成的wNw酒吧。由于在施工和运营过程中都节约了能源,wNw酒吧似乎从自然中诞生,与自然和谐相处,回归自然。

There is a 3000 square meter private beach on the island. One side of the beach is submerged in the beautiful mountains, and the other side is connected with the vast white beach. The resort consists of five cabins, a restaurant and a pavilion, which aims to immerse tourists in nature. The main building material is bamboo, which is an environmental protection material. It can be integrated and easily removed without affecting the natural beauty of the bay. The resort is gracefully located on the white sand beach, caressing nature and becoming a part of nature. The roof of the bamboo building is covered with thatch, which provides a real experience of Vietnamese culture and reduces the impact on the environment. The thin bamboo sheet used is only 40-50 mm in diameter, which is assembled by bamboo nails and fixed by ropes. The bamboo is made in a craft village in Vietnam. The bamboo is treated in a natural and traditional way, including soaking it in mud and then smoking it.

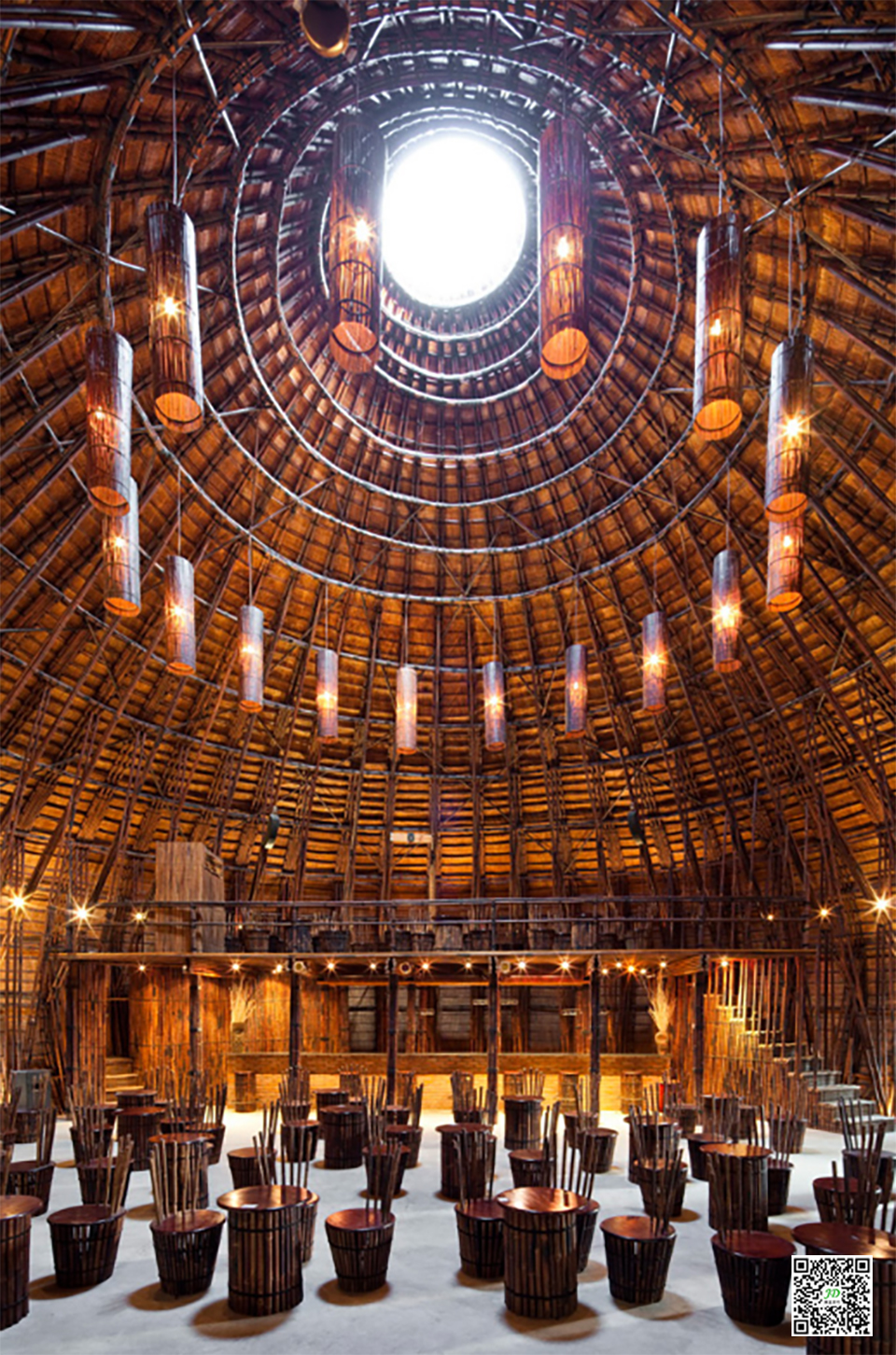

Wind and Water Bar is a purely bamboo structure located in the middle of an artificial lake, using the natural wind energy together with the cool water from the lake to make the natural air-ventilation. On the top of roof, there is a skylight with diameter of 1.5m having the function of exhausting the hot air inside the bar outside.

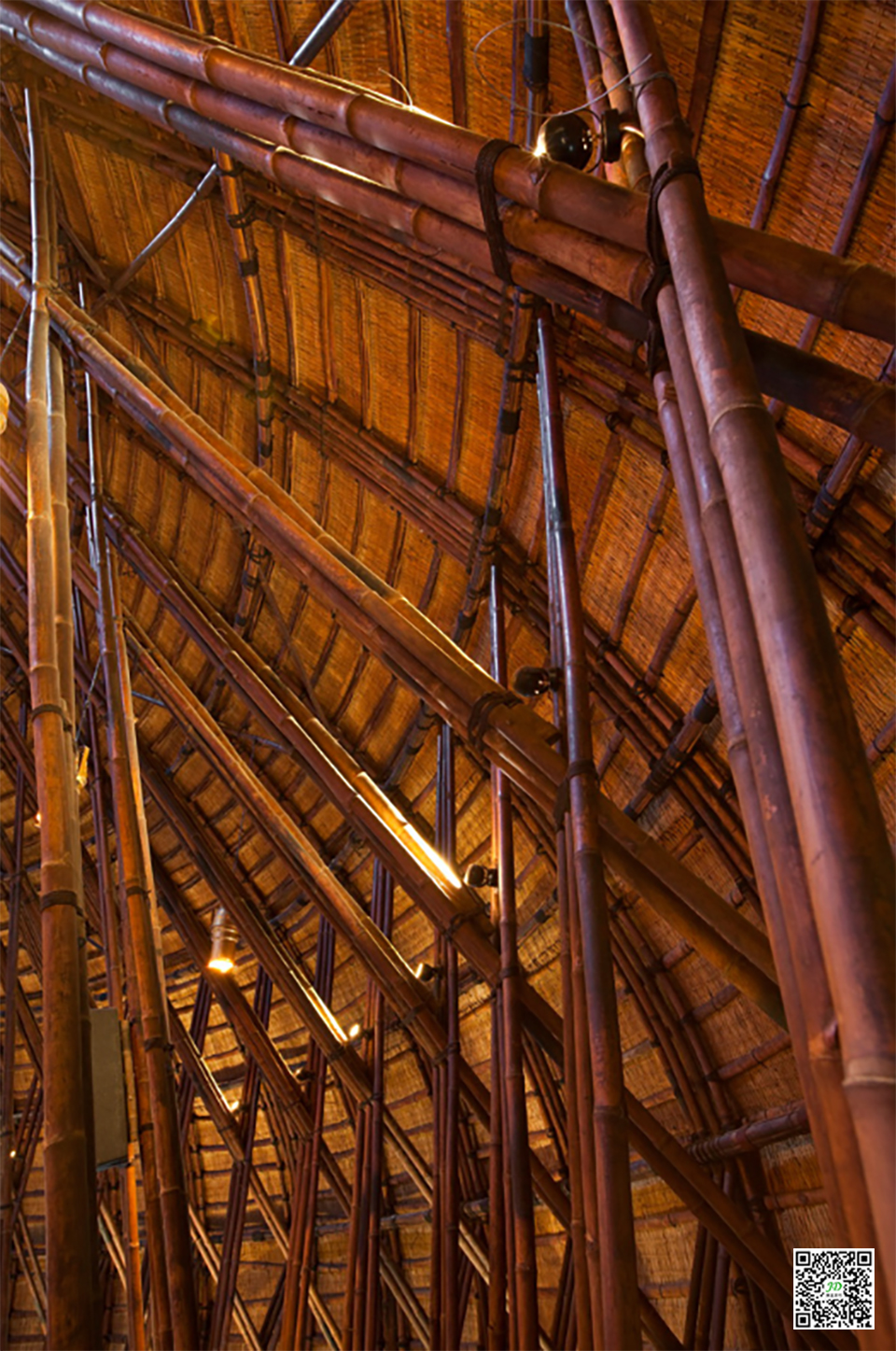

A structural bamboo arch system was designed for this dome; 10m high and spanning 15m across. The main frame is made by 48 prefabricated units, each of them is made of several bamboo elements bound together.

wNw bar has been built by local workers over a duration of 3 months. Because of energy saving during the construction as well in the operation, wNw bar seems to be born from nature, harmony with the nature and the return to the nature.
